Laboratory emulsifying homogenizer
Model:BRS-500 Price:Please call for consultation

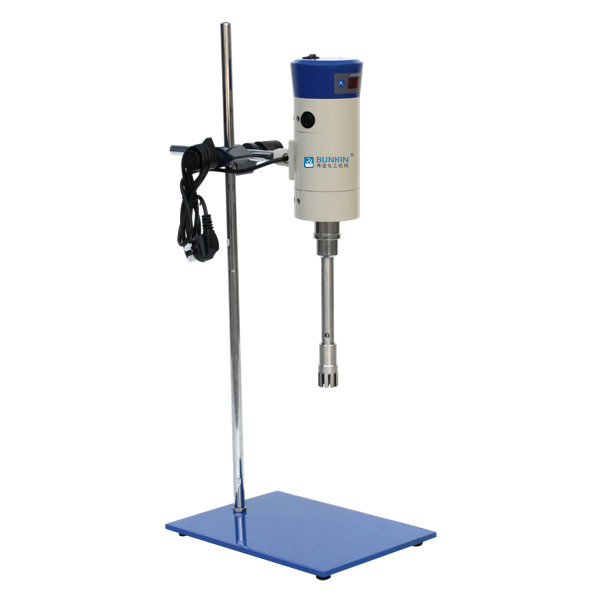

Laboratory emulsifying homogenizer is a device designed for small batch laboratory experiments.The particle size of liquid-liquid and solid-liquid materials is narrowed by external mechanical forces, so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization,dispersion and emulsification .Thus forming a stable liquid-liquid, solid-liquid dispersion status. It can be equipped with various working heads of different specifications (12mm, 18mm, 28mm, 36mm), and can deal with materials with a viscosity range of 1000cps-8000cps.

Features

1. High efficiency, good product quality
The speed range is 300-18000rpm, which can quickly disperse powder/liquid materials evenly into the liquid material; rotor and stator were manufactuerd with high accuracy,gap is small. Due to the extremely high shear force, the material is evenly dispersed, forming a good suspension effect.
2. Easy to operate

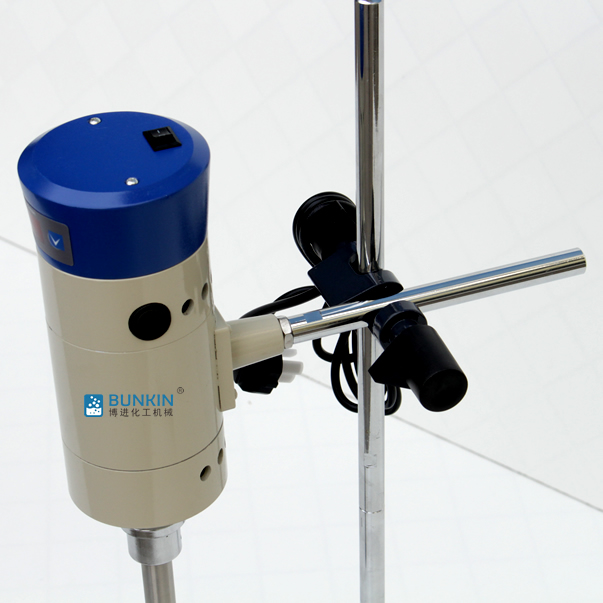

The equipment is equipped with locking and lifting handles, which can be quickly lifted and fixed; The work head has quick disassembly design, making it easy to replace and clean.
3. Wide range of application

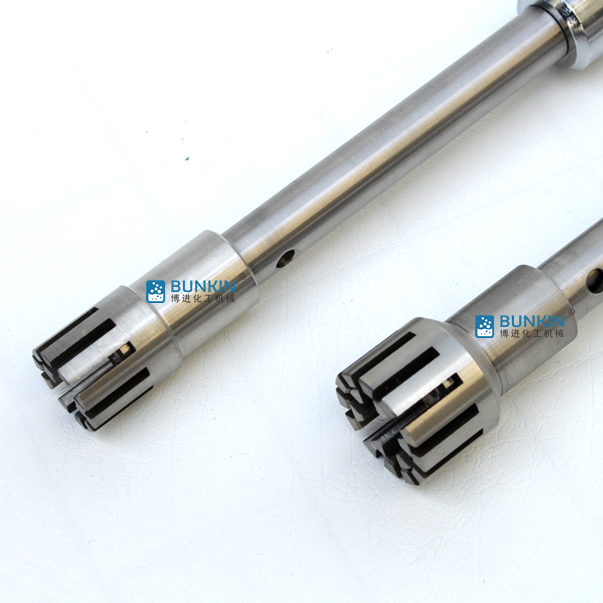

Four kinds of work head are optional, including 12mm, 18mm, 28mm, and 36mm, which can meet the processing capacity requirements of most laboratory experiments.

Working Principle

The powerful motor of the laboratory homogenizer rotates at high speed to generate vacuum condition between the rotor and stator, so materials are sucked into the chamber from the top of the stator& rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generate strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregating, dispersing, homogenizing, shearing for a certain period with help of mature production technology and certain quantity emulsifier.

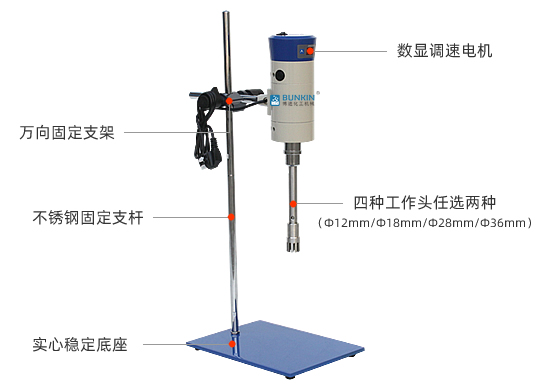

Part Description

Parameter
BRS500 乳化均质设备相关参数
Input Voltage  AC220 50/60HZ
Power  500W
Speed range(no load  300-18000rpm

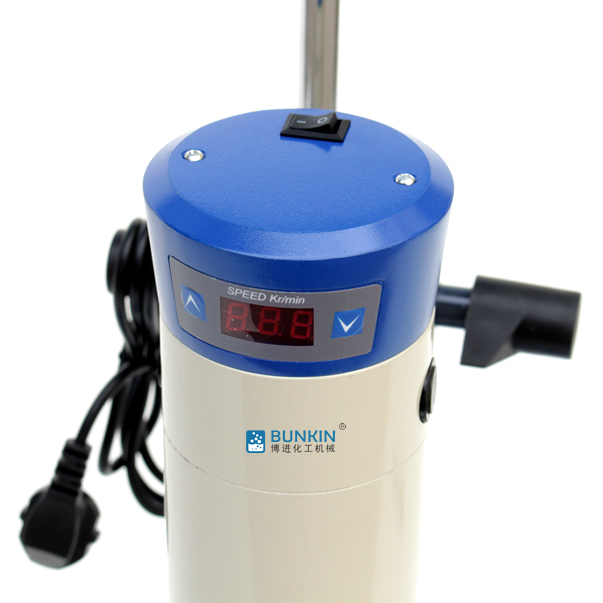

Speed control form Digital display stepless speed regulation
Dynamic speed detection  Yes
Overload protection  Yes
Workhead material  SS304(SS316 is optional)
Standard workhead  28mm、36mm (12mm、18mm are available as needs)
Dimension  215mm*310mm*720mm
Weight  9.7kg (毛重11kg)
BRS500 乳化均质选型表
Workhead Dia. 12mm 18mm 28mm 36mm
Capacity 30ml-800ml 50ml-1500ml 100ml-8000ml 150ml-10000ml
Viscosity 1000CP 2000CP 6000CP 8000CP
Linear speed 11m/s 15m/s 19m/s 27m/s
Liquid immersion height 25mm/85mm 30mm/120mm 50mm/150mm 60mm/160mm
Stator Dia. 12mm 18mm 28mm 36mm
Workhead Length 150mm 190mm 230mm 235mm
Operating temperature 120℃ 120℃ 120℃ 120℃
Workhead Material SS304 SS304 SS304 SS304
Workhead bearing material PTFE PTFE PTFE PTFE
