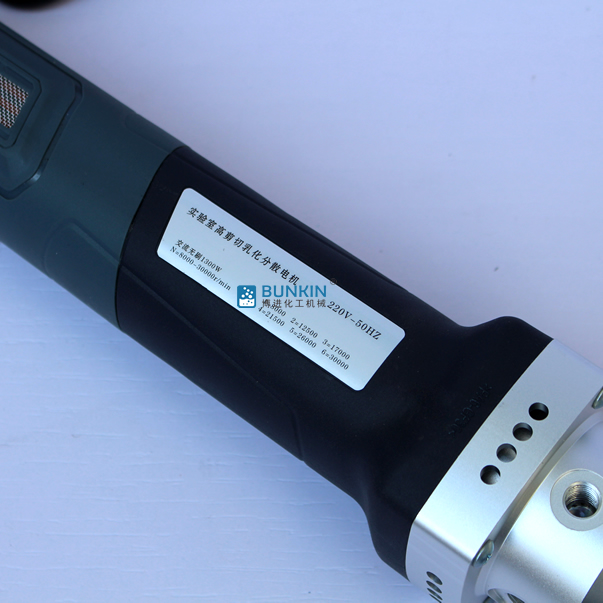

The high shear dispersing homogenizer combines dexterity and convenience,easy to operate by hand. Select German original brushless high-power motor, brushless motor, more stable operation, less noise, and can deal with a larger range of viscosity materials. The rotational speed can reach 30000 rpm, and it can be operated for 8 to 12 hours continuously . Multiple working heads are available for selection, easily meeting requirements for dispersion, emulsification, and homogenization experiments.
The equipment has a speed range of 7000-30000 rpm and can be operated continuously for a long time of 8-12 hours. It can quickly disperse powder/liquid materials evenly into othes liquids; high accuracy for rotor and stator, small gap. Due to the extremely high shear force, the material is evenly dispersed, forming a good suspension form.
The dispersing homogenizer is equipped with locking and lifting handles, which can be quickly lifted and fixed; The homogenizing head has quick disassembly design, making it easy to replace and clean.
There are various options for working heads, with standard SS316L working head, which can meet the processing requirements of most laboratory experiments.
High shear dispersing mixer is an equipment that can efficiently, fastly, and uniformly distribute one or more phases into another continuous phase, where each phase is usually immiscible to each other. Due to the strong kinetic energy generated by the high circumferential velocity and high-frequency mechanical effects caused by the high-speed rotation of the rotor, the material is subjected to strong mechanical and hydraulic shear, centrifugal compression, liquid layer friction, impact tearing, and turbulence in the narrow gap between the stator and rotor. This results in the immiscible solid, liquid, and gas phases being uniformly and finely dispersed and emulsified instantly under the combined action of corresponding mature processes and appropriate additives, After high-frequency cycling, stable and high-quality products are ultimately obtained.
| 详 细 配 置 说 明 | |
| Power Supply | 220V/50/60HZ |
| Power | 1300W |
| Speed Range | 7000-30000rpm |
| Speed display mode | Scale display |
| Speed control mode | Stepless speed regulation |
| Capacity | 50ml-20000ml(Capacity water as medium) |
| Material contact parts | SUS316L |
| Shaft sleeve material for immersed parts | PTFE |
| Maximum processing viscosity | 20000cp |
| 工 作 头 选 型 | |
| 6G | Capacity：0.2-10ml,Viscosity<100CP |
| 8G | Capacity：10-60ml,Viscosity<100CP |
| 10G | Capacity：30-150ml,Viscosity<200CP |
| 18G | Capacity：30-1500ml,Viscosity<5000CP |
| 18F | Capacity：30-1500ml,Viscosity<5000CP |
| 20F | Capacity：50-3000ml,Viscosity<5000CP |
| 25G | Capacity：50-7000ml，Viscosity<8000cp |
| 25F | Capacity：50-7000ml，Viscosity<8000cp |
| 30G | Capacity：200-20000ml，Viscosity<10000cp |
| Note: Type G is 2-tooth coarse dispersion (homogeneous dispersion of middle and high viscosity materials such as heavy oil emulsification, coal water slurry, cell and tissue crushing); F-type is 6-tooth fine dispersion (homogeneous dispersion of middle and low viscosity materials such as vaccines, nanodispersions, polymer emulsions, etc.) |
|
