Single head economical filling machine
Model:GZ-30-A Price:Please call for consultation

The single head economical filling machine adopts the weight method for measurement, through the output signal of the weighing sensor to control the opening of the feeding valve,so as to achieve automatic filling. A feeding pump is equipped at the front of the feeding port or raw material storage tank is pressurized to transport the material from the tank to the filling machine. Before filling, a filtering device can be added to remove impurities and ensure product quality; This equipment has the advantages of high filling efficiency and small filling error, and is widely used in industries such as coatings, ink, paint, asphalt, glue, lubricating oil, petrochemical, fine chemical, etc. It is not only suitable for fluids, but also for paste products

  • Viscosity
    ≤50,000cps
  • Capacity
    500-500,000ml
  • Application
    Suitable for filling products and materials in industries such as coatings, inks, adhesives (glue), resins, chemical solvents, lubricants, etc.
  • Applicable
    Liquids and slurries with material viscosity below 50000 cps and certain fluidity; Can be used for more than thousands types of materials such as edible oil, latex paint, color paste, industrial paint, curing agent, organic solvent, water-based ink, suspension agent, adhesive, detergent, etc.
  • Features

    1.Fast filling speed and wide application range
    The filling head uses single nozzle filling and adopts fast and slow dual speed filling, which can effectively improve the filling speed and save costs,Reduce the work pressure of workers; Due to the weighing design, it is suitable for filling round, square, flat, and various diameters of container.
    2.Easy to operate and maintain

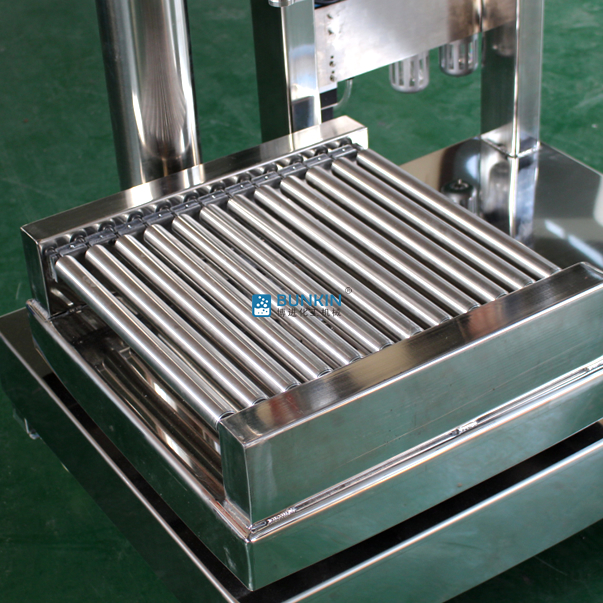

    Personalized design, one worker can complete the operation, set the specified filling amount, the filling button can automatically zero clearing and deducting tare. with roller transportation, the tank position can be adjusted according to the habits of the operators.
    3.High filling accuracy and intelligence
    Adopting famous weighing sensors, the accuracy of the weighing platform can reach over 2/10000, ensuring the filling accuracy; Equipped with automatic control instruments to achieve automatic feeding; It can automatically zero clearing and deducting tare when starting up. It has obvious intelligent advantages such as automatic correction of weight errors, power outage protection, fault detection function, and the ability to restore factory settings for misoperation.
    4.Excellent environmental protection standard,safe
    The feeding port is connected through pipes with multiple connection methods. After filling, the capping/clamping work is quickly completed with less solvent evaporation,on-site environment is good ;  roller track length can be customized according to needs.

    Working Principle

    The automatic control instrument of the single head economical filling machine receives the weight signal provided by the weighing sensor, controls the feeding valve with single head/large flow/small flow to achieve automatic filling;  it is equipped with a semi-automatic conveying roller track and a capping/clamping device to complete the material filling and sealing process.

    Part Description

    Parameter
    Model Filling Accuracy Filling Volume(Kg) Filling Speed(Barrel/M) Connecting Method Customizable
    GZ-30-A 3‰ ≤30 6-8 quick assemble/quick dismantle/SMS,etc. Roller track/platform length,etc.
