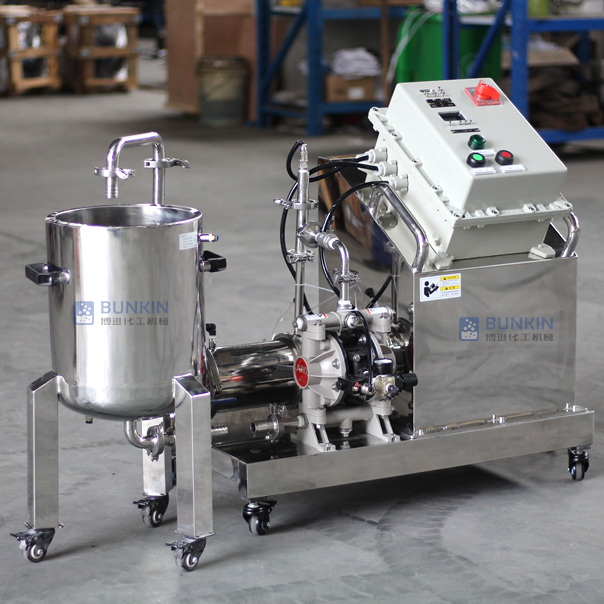

The lab pilot scale horizontal bead mill is a high-performance nanometer wet grinding equipment suitable for medium and low viscosity fluids, which is developed for colleges, universities, scientific research institutions and factory laboratories; It is equipped with an Ingersoll Rand pneumatic diaphragm pump, which can adjust the flow for different materials to achieve appropriate results; The entire machine adopts intelligent control, which can achieve real-time monitoring and protection of material temperature, current, etc., It can also perform historical queries on various motor faults, facilitating equipment maintenance and upkeep; Selecting ultrafine pure zirconia beads making the equipment get the advantages of high grinding efficiency, good grinding fineness, wide range of use, and good wear resistance, it is a laboratory grinding equipment used in the market.
1.High grinding efficiency, Excellent fineness
The powerful kinetic energy drives the zirconia paddle to do irregular movement of the grinding medium in the cavity, causing high-speed collisions and friction between each other, resulting in a rapid reduction in material particle size; 1.4-1.6mm zirconia beads can be used to get excellent fineness.
2.Easy to operate, intelligent temperature control
Adopting over temperature shutdown control method, equipped with temperature control and high-performance inverter, intuitive display and good operability; Put the material that needs to be grinded into the feeding hopper, start the machine to complete the grinding process, and after the grinding is finished, discharge the material from the port at the bottom of the grinding chamber.
3.Low temperature rise, stable to use
The tank comes with a double-layer cooling jacket,Cooling with water during operation has good effect, temperature rise less than 10 ℃; can be designed with cooling system for grinding chamber according to needs.
4.Long service life
The whole machine is made of stainless steel,aesthetically pleasing and durable to use. Adopting double sides mechanical seal, durable and no leakage, which reduces maintenance costs.
The diaphragm pump of the laboratory pilot horizontal bead mill forms a circular grinding between the materials in the feed hopper and the grinding chamber. The grinding medium in the cavity is driven by the disc to generate irregular movements in various directions. The material particles are constantly collided and rubbed by the grinding medium. At the same time, the filter plate separates the material and the grinding medium, the material continuously circulates from the material tank to the grinding chamber, achieving the goal of reducing the particle size and narrowing the particle size range.
| Model | Power(Kw) | Speed(rpm) | Grinding Chamber(L) | Zirconia Beads(mm) | Voltage(V) |
| WS-2 | 2.2 | 0-1500 | 2L | 0.8-2.0(95% zirconium content high purity zirconia beads ) | 110/220/380 |
