The motor of Lab high shear mixer drives the rotor to run at high speed, which narrows the particle size of liquid-liquid and solid-liquid materials through the action of hydraulic and centrifugal forces,so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .It has certain applicability for middle and high viscosity materials by adding a feeding pump at the front stage. The equipment runs smoothly with low noise, and has no dead corners, material is forced to disperse and shear; It has the function of short distance and low lift conveying, equipped with a single or double layer tank, which is convenient to use and easy to clean.

The lab three stages high shear mixer is a high-speed emulsification machine that continuously produces small batches or circulates fine solid-liquid and liquid-liquid materials.The motor drives the rotor to run at high speed, which narrows the particle size of liquid-liquid and solid-liquid materials through the action of hydraulic and centrifugal forces,so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .It has certain applicability for medium to high viscosity materials by adding a feeding pump at the front stage. The equipment runs smoothly with low noise, material is forced to disperse and shear, no dead corners,; It has the function of short distance and low lift conveying.

Single stage high shear mixer is a homogeneous emulsification equipment that continuously produces or circulates fine materials.The motor drives the rotor to run at high speed, which narrows the particle size of liquid-liquid and solid-liquid materials through the action of mechanical forces,so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .It has certain applicability for medium to high viscosity materials by adding a feeding pump at the front stage. The equipment runs smoothly with low noise, and has no dead corners, material is forced to disperse and shear; It has the function of short distance and low lift conveying.【Patent NO.：ZL201820997023.8】

Three stages high shear pump is a homogeneous emulsification equipment that continuously produces or circulates fine materials.The motor drives the rotor to run at high speed, which narrows the particle size of liquid-liquid and solid-liquid materials through the action of mechanical forces,so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .It has certain applicability for medium to high viscosity materials by adding a feeding pump at the front stage. The equipment runs smoothly with low noise, and has no dead corners, material is forced to disperse and shear; It has the function of short distance and low lift conveying.【Patent NO.：ZL201820997023.8】

The solid-liquid high shear mixing pump moves at high speed through the suction device of the main shaft in a narrow passage, and the vacuum generated sucks slightly lighter solid materials into the working chamber of the emulsification pump for mixing and homogeneous transportation with the liquid. It is generally connected to the outlet of the reaction kettle (tank), and when the liquid flows through the emulsification pump, it is mixed and homogenized at high speed with the inhaled solid material, enabling the solid material to quickly obtain processes such as mixing, reaction, depolymerization, dissolution, and homogenization.

High frequency high shear lime pump is a special pump that integrates transportation and high shear emulsification, overcoming the problem of difficult refining of lime slurry in sugar factories for many years. This lime pump can not only complete the transportation of lime milk, but also cut 1-3 mm lime milk particles into 0.06-0.08mm lime milk during the transportation process, which is directly used for preliming and neutralization of sugarcane juice,This provides guarantee for the stable control of pH values in preliming, neutralization, and clarification, ensuring the stability and improvement of sugar quality.

The laboratory homogenization & emulsification unit is a well sealed equipment that combines low-speed wall scraping and stirring, high shear emulsification pump, circulation pipeline, vacuum sealing system, circuit control, and other equipment. The equipment can be customized with various specifications of vacuum sealing, heating or cooling, electric control and other functions to meet the needs of the laboratory test and mass production.

The homogenization & emulsification unit is a well sealed equipment that combines low-speed wall scraping and stirring, high shear emulsification pump, circulation pipeline, vacuum sealing system, circuit control, and other equipment. The equipment can be customized with various specifications of vacuum sealing, heating or cooling, electric control and other functions to meet the needs of the laboratory test and mass production.

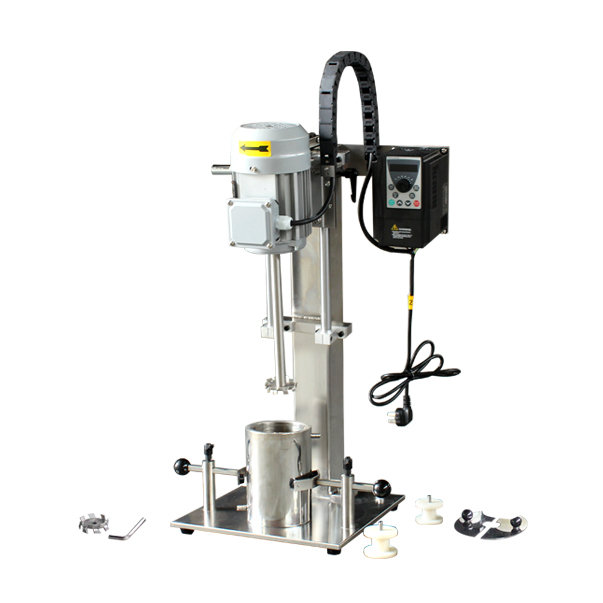

Laboratory electric lift emulsifier is a homogeneous emulsifying device designed for small batch laboratory experiments.The particle size of liquid-liquid and solid-liquid materials is narrowed by external mechanical forces, so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .Thus forming a stable liquid-liquid, solid-liquid dispersion status.Can be equipped with various specifications of work heads.

Pneumatic lift high shear mixer is fixed on various containers and can be made as closed vacuum type, which can be combined with other Reactors to achieve automatic production system. The particle size of liquid-liquid and solid-liquid materials is narrowed by external mechanical forces, so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .Thus forming a stable liquid-liquid, solid-liquid dispersion status.The work head is made of new bidirectional materials and refined from stainless steel forgings. There are two types of installation: top and bottom, using three installation methods: vertical, offseting, and oblique. In pressure application conditions, double sides mechanical seals are used with a sealed self-lubricating system.

The particle size of liquid-liquid and solid-liquid materials is narrowed by external mechanical forces, so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .Thus forming a stable liquid-liquid, solid-liquid dispersion status.The working head of the hydraulic lift high shear mixer is refined from stainless steel forgings, and various working head structures can be equipped according to different emulsification requirements. The hydraulic lift high shear mixer is controlled by hydraulic pressure for lifting.

The particle size of liquid-liquid and solid-liquid materials is narrowed by external mechanical forces, so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .Thus forming a stable liquid-liquid, solid-liquid dispersion status.The emulsifying machine is a batch type equipment,the working head adopts a new bidirectional suction structure. It is divided into three installation positions: top, side, and bottom. It can be combined with different types of mixers such as dispersion and mixing to achieve the function of one machine with multiple uses. The equipment is suitable for a wide range of viscosity and temperature, and can be customized for vacuum (100mbar), explosion-proof (ATEX), and pressure (0.3MPa) working conditions.
