The motor of Lab high shear mixer drives the rotor to run at high speed, which narrows the particle size of liquid-liquid and solid-liquid materials through the action of hydraulic and centrifugal forces,so that one phase is evenly distributed to another or more phases, so as to achieve the effect of refine homogenization and disperse emulsification .It has certain applicability for middle and high viscosity materials by adding a feeding pump at the front stage. The equipment runs smoothly with low noise, and has no dead corners, material is forced to disperse and shear; It has the function of short distance and low lift conveying, equipped with a single or double layer tank, which is convenient to use and easy to clean.
1.Easy to operate
Equipped with a circulating tank, good conveying ability, convenient solvent self circulation cleaning, no need for additional transfer pumps, jacket tank,low temperature rise.
2.High efficiency,good product quality
Linear speed can reach 20m/s or more, which can quickly distribute a homogeneous material into another or multiple materials, achieving a refined, homogenized, dispersed and emulsified effect. The product is stable and not easy to stratify.
3.High machining precision
The rotor and stator is made of forged materials and processed by CNC machining centers. The gap between the rotor and stator is extremely small so that obtains good shear fineness ,high emulsification and dispersion efficiency. It adopts double sides mechanical seal, no leakage, which reduces maintenance costs.
4.Various customized equipment
The material can be customized with non-standard materials such as SS304, SS316L/titanium alloy/titanium molybdenum nickel alloy according to requirements; explosion-proof model, vacuum model and other models are available, and frequency control is optional.

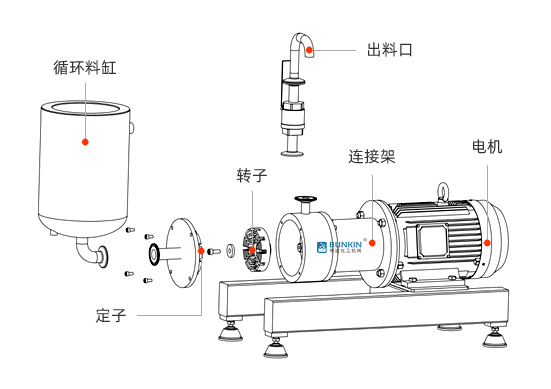

The Lab high shear mixer adopts horizontal structure; One or more sets of rotors and stators are installed in the narrow working chamber, the rotors and stators are precisely coupled; The intermediate shaft is driven by a motor for high-speed operation, vacuum condition occurs between rotor and stator,The material is sucked into the rotor&stator cavity from the inlet of the sinlge/jacket tank, Rotor driven by the strong kinetic energy creates high linear speed,material will be pumped out after strong crushing, tearing, centrifugal extrusion, hydraulic friction,etc between the gap of the stator and rotor.The material flows out from the outlet and goes into the single/double layer tank for circulation, Thus, various immiscible solid, liquid, and gas media can be uniformly and finely dispersed and emulsified instantly, achieving stable and high-quality products.
| Model | Power | Speed | Capacity | Work head | Input Voltage |
| BZ1-1.5 | 1.5kw | 0-3000rpm | 1L-10L | Single stage six layers | 380V/220V |
| BZ1-2.2 | 2.2kw | 0-3000rpm | 2L-20L | Single stage six layers | 380V/220V |
