Laboratory horizontal bead mill is a high-performance wet grinding equipment developed for colleges, universities, scientific research institutions and factory laboratories, it is suitable for medium and low viscosity fluids; The equipment is equipped with a digital display for speed (0-3000rpm), stepless variable frequency speed regulation, can be operated for a long time with stable operation and low noise; Imported wear-resistant high purity zirconia beads is selected , with the advantages of high grinding efficiency, good grinding fineness, wide range of use, and good wear resistance. It is a laboratory grinding equipment that used in the market.
1. High grinding efficiency, Excellent fineness
The powerful kinetic energy drives the zirconia paddle to do irregular movement of the grinding medium in the cavity, causing high-speed collisions and friction between each other, resulting in a rapid reduction in material particle size; 1.4-1.6mm zirconia beads can be used to get excellent fineness.
2. Easy to operate
It is equipped with an inverter, which can directly control the startup and speed regulation; Manually put the materials that need to be grinded into the feeding hopper,it has a self circulation function,the grinding process can be started by starting the machine . After the grinding is completed, materials can be discharged from the port at the bottom of the grinding chamber.
3. Low temperature rise, stable to use
The tank comes with a double-layer cooling jacket,Cooling with water during operation has good effect, temperature rise less than 10 ℃; can be designed with cooling system for grinding chamber according to needs.
4. Long service life
Whole machine adopts stainless steel structure, durable to use and easy to clean.

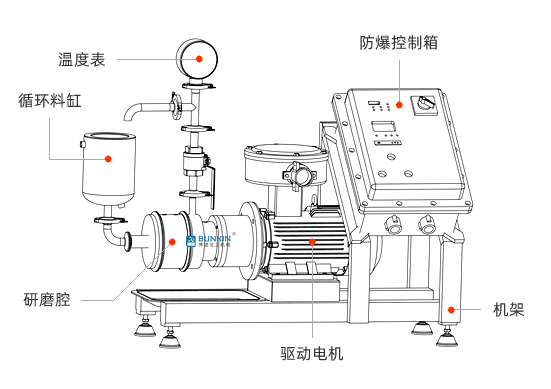

The motor of the laboratory horizontal bead mill drives the internal feeding device to rotate at a high speed, forming a negative pressure. Through the self suction, the materials placed in the upper material tank are sucked into the grinding chamber. The grinding medium in the cavity is driven by the disc to generate irregular movements in various directions. The material particles are constantly collided and rubbed by the grinding medium. At the same time, the filter plate separates the material and the grinding medium, the material continuously circulates from the material tank to the grinding chamber, achieving the goal of reducing the particle size and narrowing the particle size range. The material cylinder and jacket can be used with cooling devices to ensure high-quality products.
| Model | Power(Kw) | Speed(rpm) | Grinding Chamber(L) | Zirconia Beads(mm) | Voltage(V) |
| WS-0.5 | 2.2 | 0-3000 | 0.5L | 0.8-2.0(95% zirconium content high purity beads) | 220/110/380/415 |
